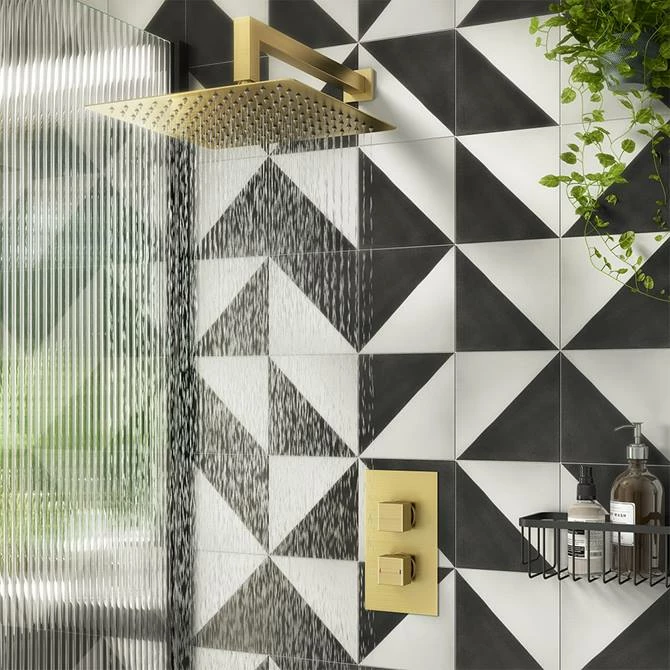

Arezzo Brushed Brass Square Shower Package With Concealed Valve + 300mm Head

Arezzo Brushed Brass Square Shower Package with Concealed Valve and 300 x 300mm Head

This Arezzo square concealed thermostatic valve features a luxury brushed brass finish with square tap head controls, perfect for creating an eye catching look in your bathroom. Offers thermostatic showering via two easy-to-operate controls for temperature and flow. The valve body comes with a contemporary rectangular backplate and has been constructed from solid brass. Supplied with matching wall mounted 300 x 300mm ultra-thin square fixed rainfall shower head with swivel joint and arm.

Shower Valve Details

• Height: 215mm
• Width: 120mm
• Style: Modern
• Colour/Finish: Brushed Brass
• Valve Handles: Square
• Brass Internals
• Thermostatically controlled
• Water Pressure: 0.5 bar to 5 bar
• Rectangular Backplate
• For use with 1 Outlet
• Can be fitted vertically or horizontally
• Shower head sold separately
• Suitable for modern pressurised plumbing systems.
• Hot water temperature 55 to 85 Degrees
• With gravity fed systems a pump will be required, we recommend a universal or negative head pump
• Flow Rates:
• 0.5 bar – 9.6 L/M
• 1 bar – 14.1 L/M
• 2 bar – 20.5 L/M
• 3 bar – 24.8 L/M
• 4 bar – 28.3 L/M
• 5 bar – 32 L/M

Shower Head + Arm Details

• Shower Head Size: 300 x 300mm
• Shower Arm Length: 388mm
• Style: Modern
• Shape: Square
• Colour/Finish: Brushed Brass
• Material: Brass
• Thickness/Profile: 3mm (excluding swivel joint)
• 90-degree Bend
• Wall Mounted
• Pressure requirements: 0.5 bar minimum
• Inlet Connections: 1/2″ BSP
• Supplied with swivel joint Rub clean nozzles makes this item easy to clean and maintain
• Installation of the arm requires rear access behind the wall.

All measurements are approximate

Pictures for illustrative purposes only

Guarantee: 3 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Comprises

(1) Twin Square Concealed Shower Valve  – 1 Outlet
(1) Square Wall Mounted 90 Degree Bend Shower Arm – 388mm
(1) Ultra Thin Square Shower Head (300 x 300mm)

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
