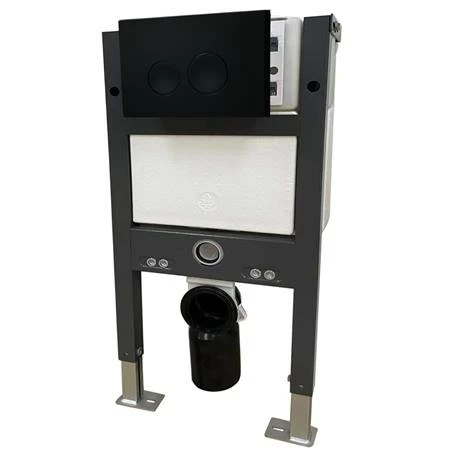

Arezzo Compact Toilet Fixing Frame With Dual Flush Cistern + Modern Toilet

Arezzo Compact Top/Front Flush Toilet Frame with Dual Flush Cistern, Matt Black Round Button Flush Plate + Wall Hung Modern Toilet

This quality compact toilet fixing frame helps to bring style to your bathroom in the form of wall hung toilets. This fixing frame has a small, compact design making it perfect for under windows or inside low-wall installations. This fixing frame is supplied with a modern matt black dual flush push plate which can be mounted on the front or top of the cistern, giving added flexibility.

Wall Hung Frame Details

• Height: 755-1055mm (Approx.)
• Width: 415mm
• Depth: 166mm
• Frame Height Adjustment: 0-300mm
• Full Flush: 6-7.5L, Half flush: 2.5-4L
• Fill valve pressure: 0.2-16bar
• Metal Frame Support weight: 400KG
• Compatible with all wall-hung WC pans
• Built-in or plasterboard wall installation
• Flush Plate Size: 242 x 160mm
• Flush Plate Colour: Matt Black
• Button Shape: Round
• Style: Modern
• Top or front flush installation
• Water saving dual-flush valve
• Insulated against condensation and reduces noise from water tank
• Durable moulded tank
• Easy access for maintenance
• Minimalist compact slimline design
• Suitable for bathroom furniture and concealed framework
• This fixing frame has a small, compact design making it perfect for under windows or inside low-wall installations.
• Includes brackets and WC bend

Wall Hung Pan Options:

Option 1 – Premier Clara Wall-Hung Pan with Soft Close Seat

• Width: 355mm
• Depth: 525mm
• Height: 355mm
• Style: Contemporary
• Colour/Finish: Gloss white
• Material: Ceramic construction
• Supplied with soft-close seat

Option 2 – Hudson Reed – Round Wall-Hung Pan with Top-Fix Soft Close Seat

• Height: 350mm
• Width: 355mm
• Depth: 510mm
• Product Code: CPA004
• Brand: Hudson Reed
• Colour/Finish: Gloss white
• Material: Ceramic construction
• Supplied with a top-fix soft-close seat

Option 3 – Hudson Reed – Square Wall Hung Pan with Top-Fix Soft Close Seat

• Height: 360mm
• Width: 350mm
• Depth: 525mm
• Product Code: CPA005
• Brand: Hudson Reed
• Colour/Finish: Gloss white
• Material: Ceramic construction
• Supplied with a top-fix soft-close seat

Option 4 – Toronto Modern Round Wall Hung Toilet Details

• Projection: 530mm
• Width: 355mm
• Height: 400mm
• Colour/Finish: Gloss White
• Material: Ceramic
• Supplied with a D-Shape Soft Close Top-Fixing Seat

Included:

Wall Hung Pan
Frame + Cistern
Compact Top/Front Flush Toilet Frame

Pictures shown are for illustration purposes only.

All measurements are approximate

Guarantee

Pan – 5 years
Seat – 1 Year
Cistern – 5 Years for tank and 2 Years for fill valve and flush valve)
